Innovative program(s) in energy and climate change
Number of innovative program(s) in energy and climate change

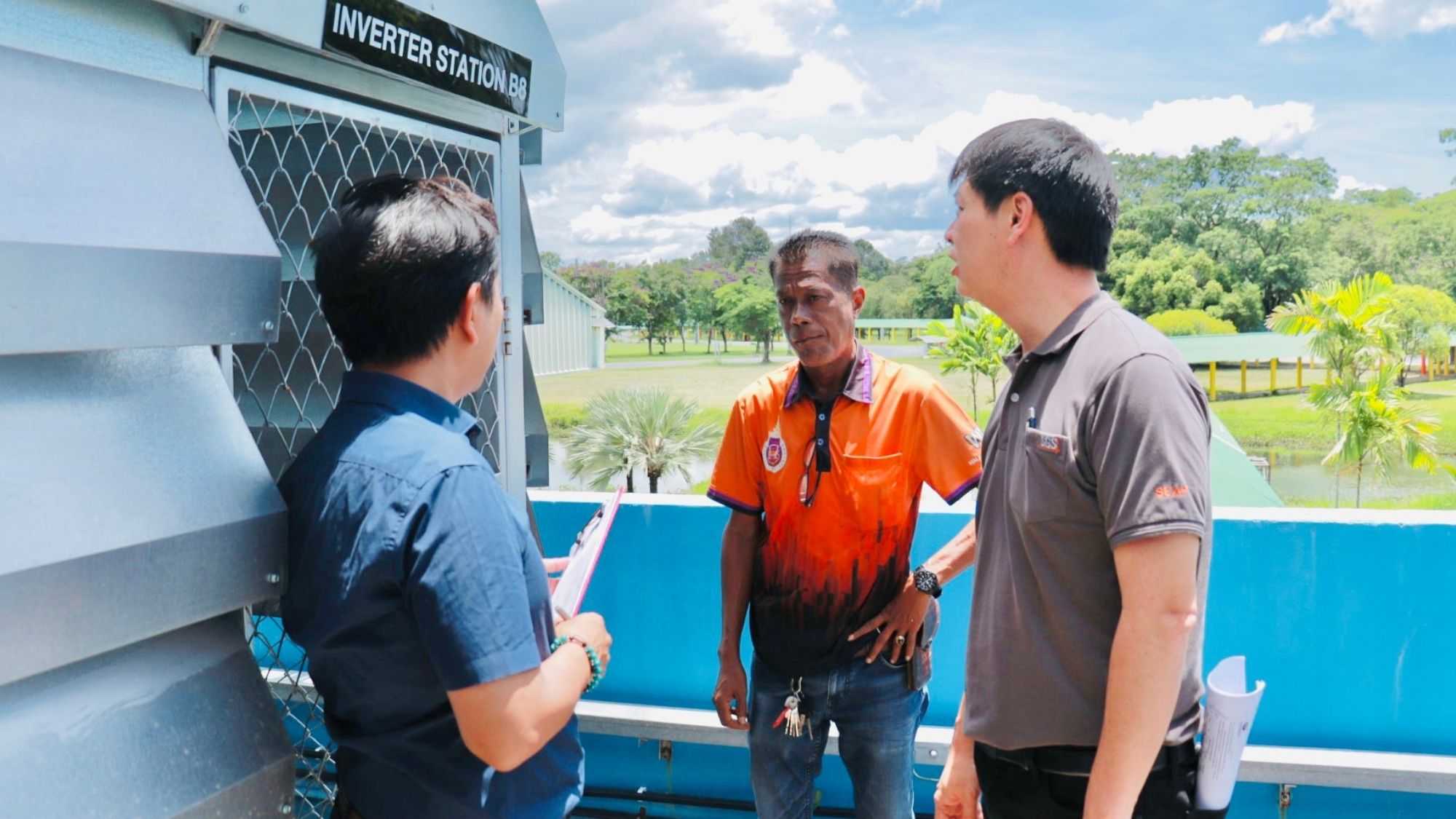

- Solar Roof Installation at the Center for Scientific and Technological Equipment
This project enhances energy efficiency by harnessing solar power, reducing dependence on conventional energy sources.
Reference of data : Real-time renewable energy monitoring program

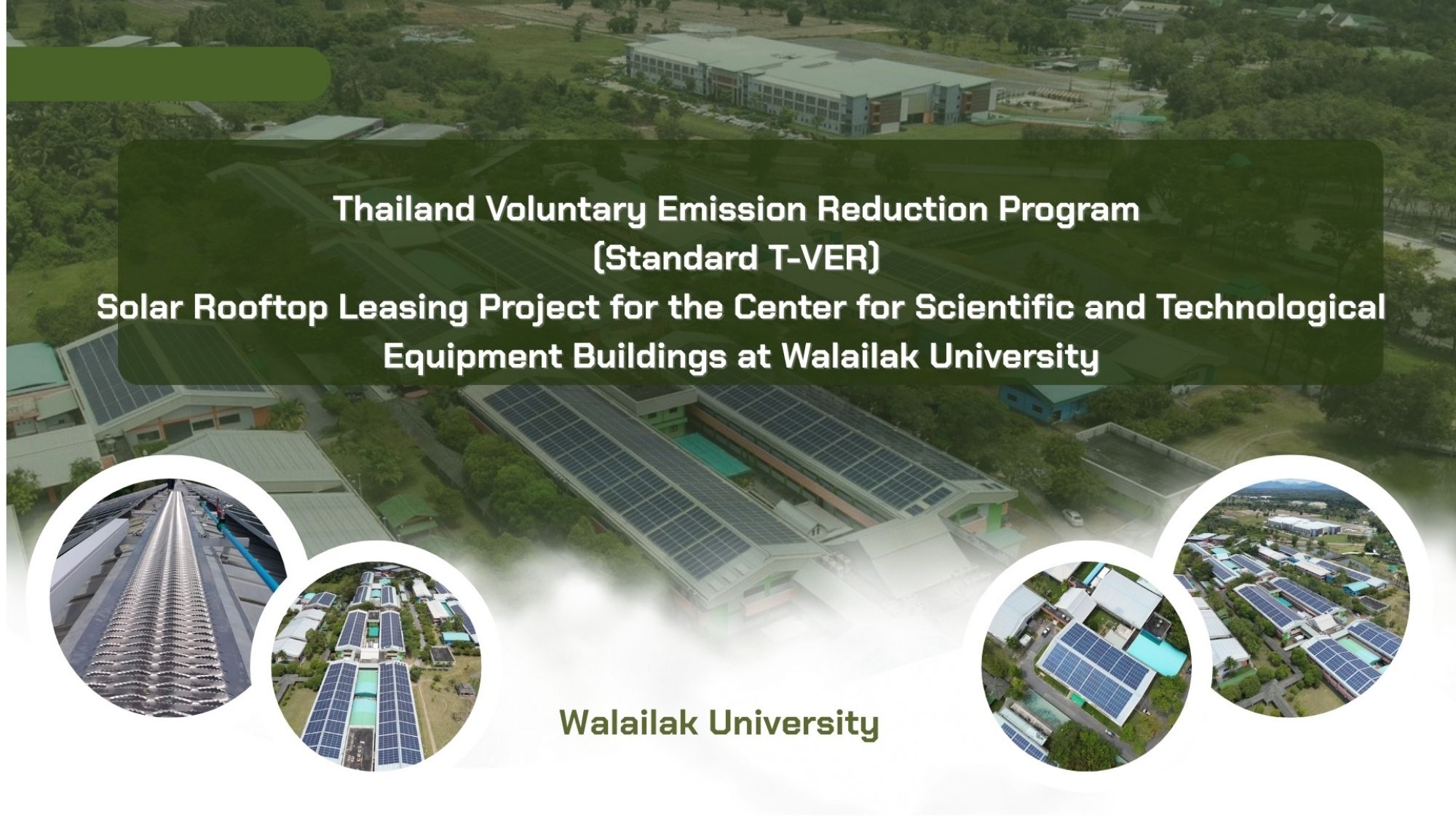

- Walailak University’s 2.54 MW rooftop solar project at the Center for Scientific and Technological Equipment has been validated under the Thailand Voluntary Emission Reduction (TVER) Program, resulting in an average reduction of 1,585 tCO₂e in greenhouse gas emissions per year
This solar photovoltaic (PV) installation generates renewable electricity that offsets grid electricity consumption, reducing Scope 2 indirect emissions. Beyond environmental benefits, the system also enhances energy security, lowers operational costs, and serves as a model for sustainable campus infrastructure that supports Thailand’s and the global community’s climate action goals.
- Automatic air conditioning on-off control system based on class schedule
This platform is designed to help communities manage water resources for agricultural purposes by leveraging mobile cloud computing technology. The web application allows real-time monitoring, data collection, and decision-making on water usage, irrigation scheduling, and resource allocation, ensuring more efficient and sustainable water management.

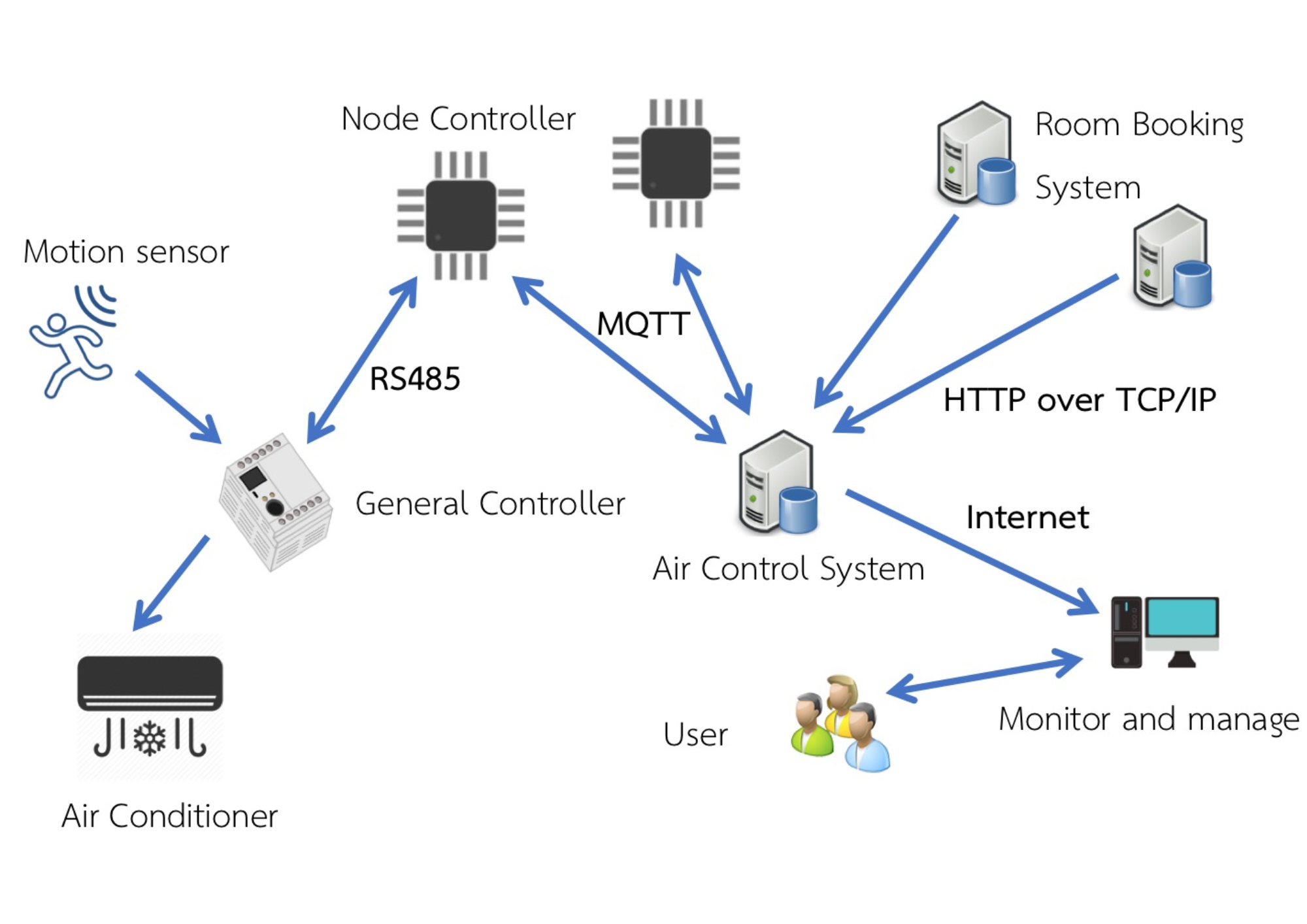

Picture : The architecture of an air conditioning control system that operates according to a scheduled time
The air conditioning control system consists of the following components :
- Main Server Computer (Air Control System): This server contains software that communicates with other servers managing room usage schedules and other command or setting patterns from users. It also connects to microcontroller devices (Node Controllers) responsible for controlling sensors and switches.
- Server Computer for Room Scheduling (Room Booking System): Typically, the institution has a dedicated server that manages the classroom schedules.
- User Application for System Management (Monitor and Manage): This application, installed on a personal computer connected to the internet, allows users to manage the entire system and monitor its operation.
- Microcontroller Devices (Node Controllers): These devices act as intermediaries between the main server and the controllers managing sensors or switches. They are installed in each room to receive commands from the server to control the air conditioning circuitry. These microcontrollers need to be capable of data communication through an appropriate internet channel, such as Wireless, LAN, Low Power Wide Area Network (LPWAN), or another suitable method.
- Microcontroller for Circuit Switching (General Controller): If necessary, a microcontroller may be used to control the air conditioning circuitry as commanded by the Node Controller or to receive data from sensors and send it to the Node Controller. In some cases, the Node Controller may perform the functions of the General Controller directly.
- Sensors (e.g., Motion Detectors): These are suitable sensors that can transmit detection results to the microcontroller.
System Operation Principles :
- Every 5 minutes, the central control system requests room schedule information from the server that manages classroom times. If there are schedule changes in any room, the central control system is immediately updated.
- The central system requests the room usage status as detected by motion sensors installed in the room.
- If a room is currently booked and the presence of users is detected, the system activates the air conditioning.
- If the conditions in step 3 are not met, the system turns off the air conditioning.
- Every 5 minutes, the system records the air conditioning status for future review.
Reference of data : Automatic Air Conditioning On-Off Control System

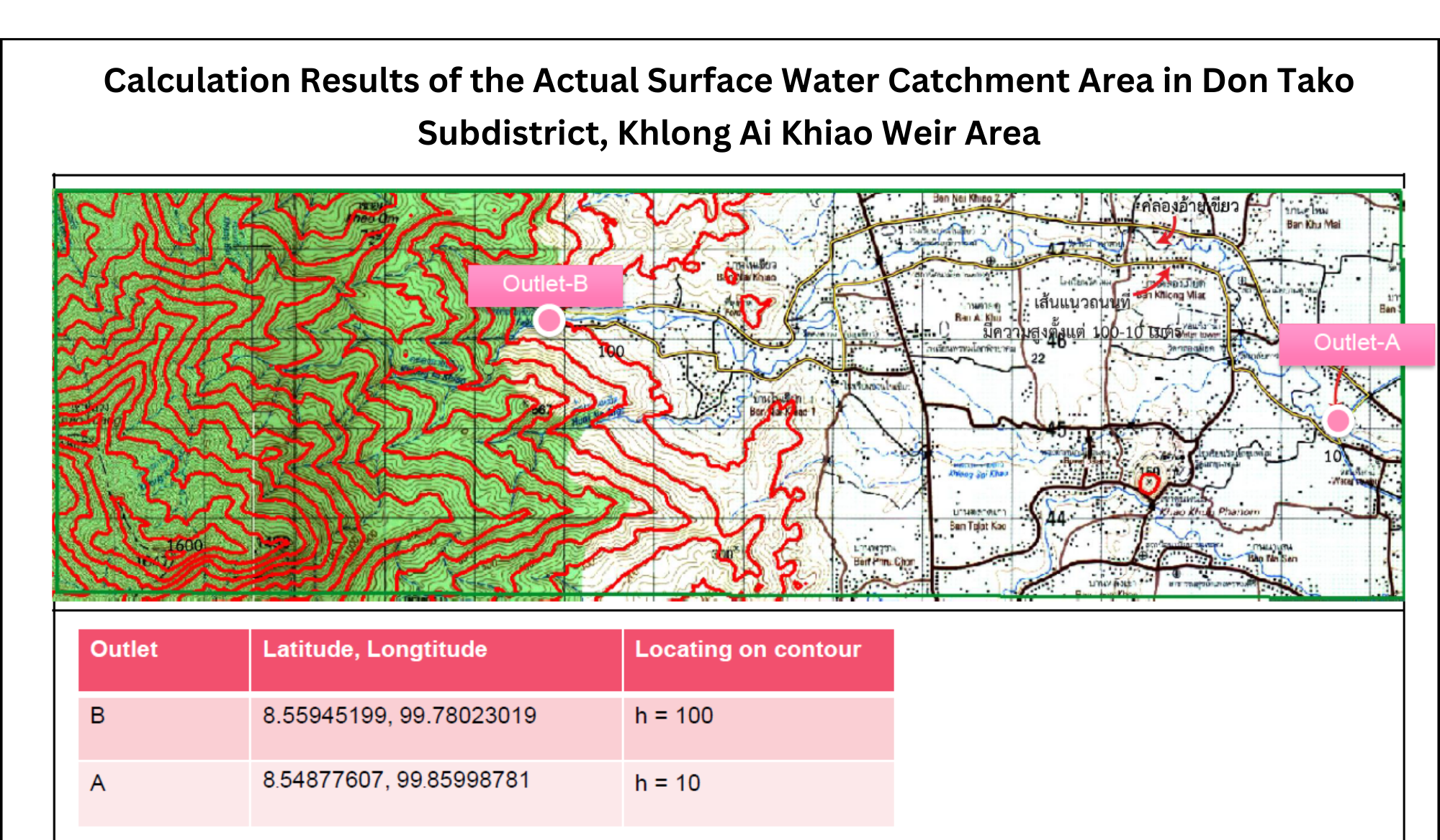

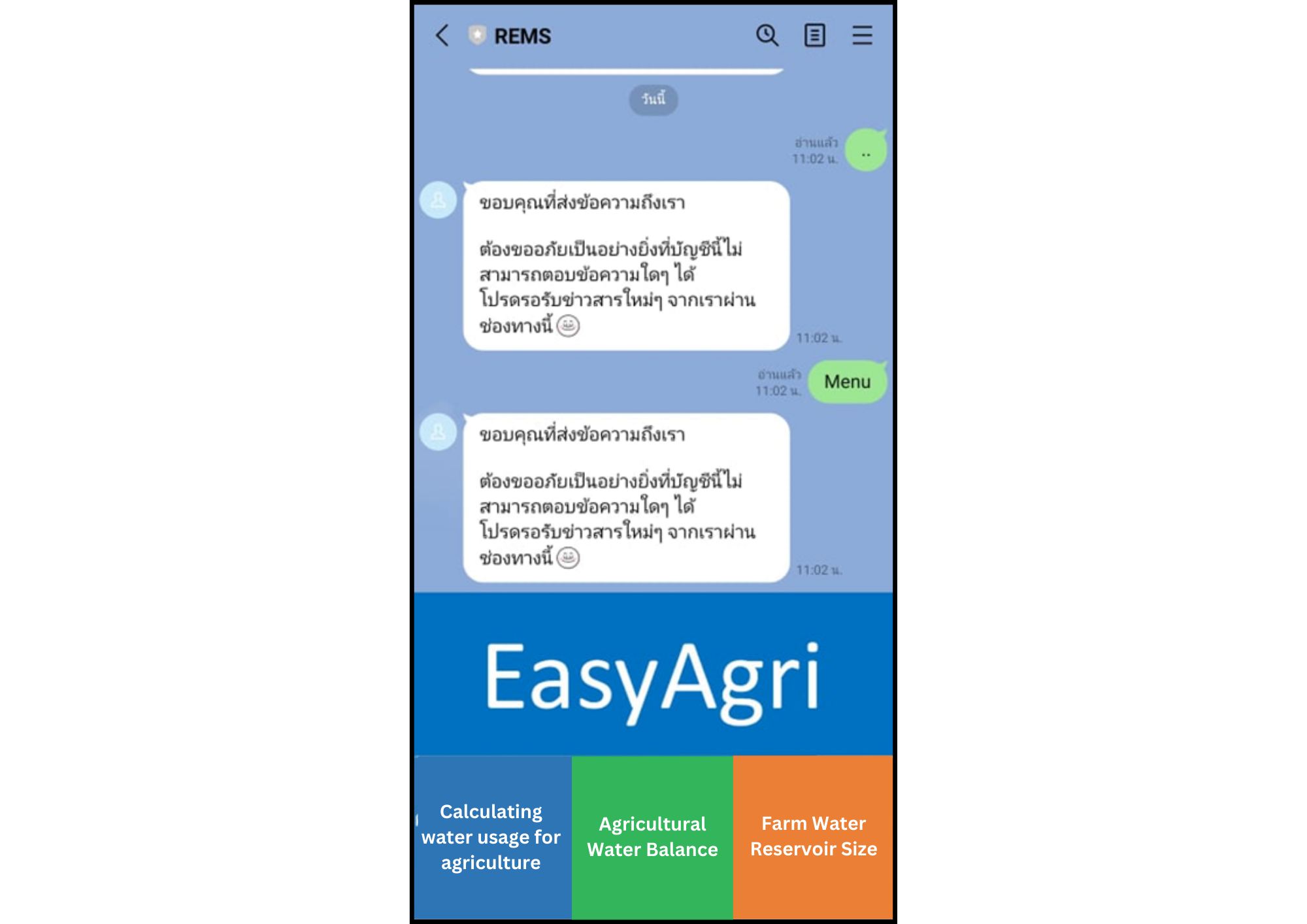

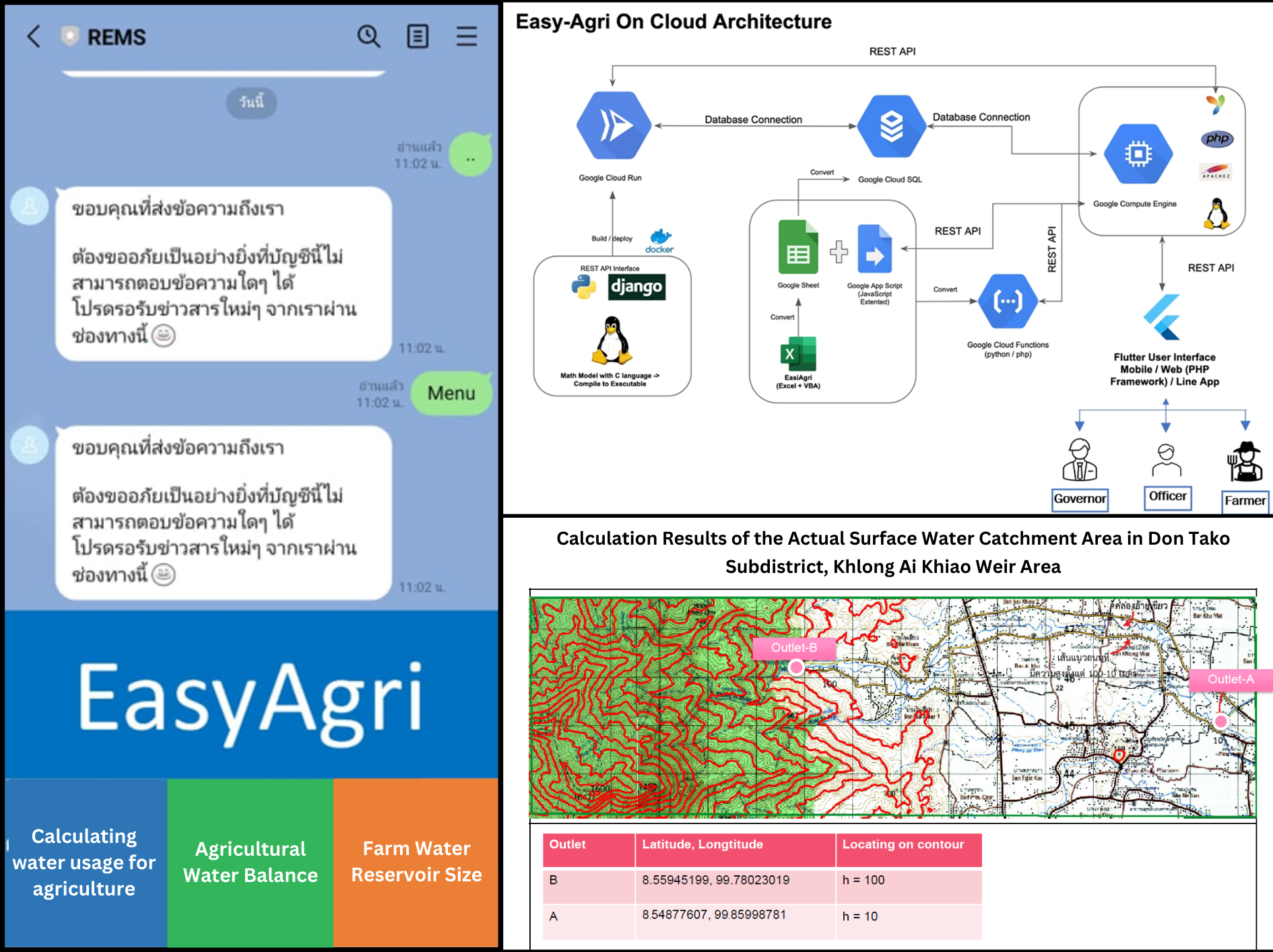

- Community Water Management Platform for Agriculture Using Mobile Cloud Computing
- Program for Reduction paper use by electronic system.

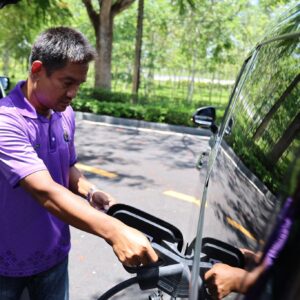

- VOLTA FLEET — Electric vehicle charging system at Walailak University supporting Auto Charge and card access for efficient, sustainable campus mobility
VOLTA FLEET, the electric vehicle charging management system at Walailak University, Thailand, is designed to help control costs, monitor usage, and enhance service convenience. It supports both Auto Charge and card-based charging systems for efficient and sustainable campus mobility.
